40A41 MSG

Name: 40A41 MSG
Brand: Martin Sprocket & Gear
SKU: 40A41 MSG
Price: 32.25 USD
Availability: OutOfStock

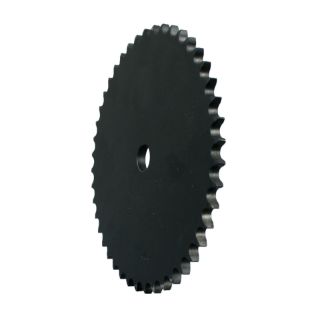

Martin 40A41 Type A Single Strand Solid Reboreable Roller Chain Sprocket, 0.71875 to 5.983 in Dia Bore, 6.813 in OD, #40 Chain, 41 Teeth, 1/2 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 40A41

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$32.25

Qty:

Product Details

Brand Name

Martin

Type

Type A Single Strand Solid Reboreable

Description

A Plates are flat sprockets with no hub extension on either side. They can be altered for your application with bolt holes, custom bores, hardened teeth or special hubs welded to them.

Martin Roller Chain Sprocket, Type A Single Strand Solid Reboreable, 0.71875 to 5.983 in Bore, 6.813 in OD, #40 Chain, 41 Teeth, 1/2 in Pitch, 6.5317 in Pitch Diameter, 0.284 in Length Through Bore, Steel

Standards

ANSI Specified | B29.1 - 1975

Features

Precise machining and processes ensure consistent finish and high quality
Manufactured of high carbon steel

Specifications

Bore Diameter:	0.71875 to 5.983 in
Chain Size:	#40
Length Through Bore:	0.284 in
Material:	Steel
Number of Teeth:	41
Outside Diameter:	6.813 in
Pitch:	1/2 in
Pitch Diameter:	6.5317 in
