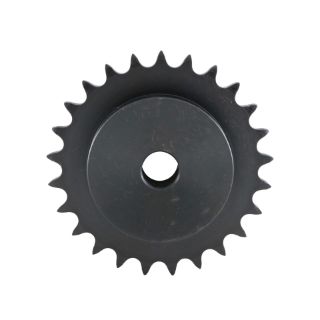

Actual Product May Vary From Image

40B15 UST

Name: 40B15 UST
Brand: US Tsubaki
SKU: 40B15 UST
Price: 14.80 USD
Availability: OutOfStock

Tsubaki® 40B15 Plain Bore Type B Single Pitch Roller Chain Sprocket, 1/2 in Dia Bore, 2.65 in OD, #40 Chain, 15 Teeth, 1/2 in Pitch, Carbon Steel

Manufacturer: US Tsubaki

Manufacturer part number: 40B15

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$14.80

Qty:

Product Details

Brand Name

Tsubaki®

Type

Plain Bore Type B

Alternate Supplier #

Applied Industrial Technologies - 101621738
Motion Industries - 00163754

Description

Associated with "B" style sprockets where there is no special machining performed to accommodate keyways or set screws, only a hole to accommodate shaft diameter.

Tsubaki® Single Pitch Roller Chain Sprocket, Plain Bore Type B, 1/2 in Bore Dia, 2.65 in Outside Dia, #40 Chain, 15 Teeth, 1/2 in Pitch, 2.405 in, 1.813 in Hub Dia, 1-24 Screw, 1/8 x 1/16 in Keyway, 7/8 in Length Through Bore, Carbon Steel

Application

Oil and Gas, Lumber, Mining, Primary Metals, Material Handling, Conveyor, Civil Engineering Projects, Machine Tool, Marine, Packaging Machinery, Pulp and Paper, Food Processing and Forestry

Standards

PTDA and CEMA Standard

Specifications

Bore Diameter:	1/2 in
Chain Size:	#40
Country of Origin:	CN
Hub Diameter:	1.813 in
Keyway Size:	1/8 x 1/16 in
Length Through Bore:	7/8 in
Material:	Carbon Steel
Number of Teeth:	15
Outside Diameter:	2.65 in
Pitch:	1/2 in
Pitch Diameter:	2.405 in
Screw Size:	1-24
