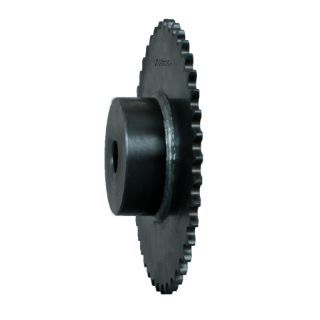

Actual Product May Vary From Image

40B47 MSG

Name: 40B47 MSG
Brand: Martin Sprocket & Gear
SKU: 40B47 MSG
Price: 61.73 USD
Availability: OutOfStock

Martin 40B47 Type B Single Strand Welded Reboreable Roller Chain Sprocket, 3/4 to 2-3/8 in Dia Bore, 7.769 in OD, #40 Chain, 47 Teeth, 1/2 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 40B47

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$61.73

Qty:

Product Details

Brand Name

Martin

Type

Type B Single Strand Welded Reboreable

Description

B Style sprockets are flat sprockets with a hub extension welded on one side. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, setscrews and hardened teeth are quick alterations that can be made.

Martin Roller Chain Sprocket, Type B Single Strand Welded Reboreable, 3/4 to 2-3/8 in Bore, 7.769 in OD, #40 Chain, 47 Teeth, 1/2 in Pitch, 7.4859 in Pitch Diameter, 3-1/2 in Diameter Hub, 1-1/8 in Length Through Bore, Steel

Standards

ANSI Specified | B29.1 - 1975

Features

Precise machining and processes ensure consistent finish and high quality
Bores are concentric to pitch line, minimizing run out
Manufactured of high carbon steel

Specifications

Bore Diameter:	3/4 to 2-3/8 in
Chain Size:	#40
Hub Diameter:	3-1/2 in
Length Through Bore:	1-1/8 in
Material:	Steel
Number of Teeth:	47
Outside Diameter:	7.769 in
Pitch:	1/2 in
Pitch Diameter:	7.4859 in
