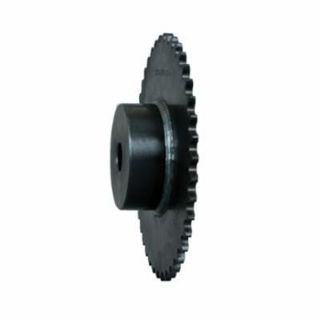

Martin 40B48 Stock Bore Type B Single Pitch Roller Chain Sprocket, 3/4 in Dia Bore, 7.929 in OD, #40 Chain, 48 Teeth, 1/2 in Pitch, Steel
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 40B48
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$62.32

Product Details

Brand Name

Martin

Type

Stock Bore Type B

Description

B style sprockets are flat sprockets with a hub extension welded on one side. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, set screws and hardened teeth are quick alterations that can be made.
Martin Single Pitch Roller Chain Sprocket, Stock Bore Type B, 3/4 in Bore Dia, 7.929 in Outside Dia, #40 Chain, 48 Teeth, 1/2 in Pitch, 7.645 in, 3-1/2 in Hub Dia, 1-1/8 in Length Through Bore, Steel

Standards

PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Features

Hub one side

Specifications

Bore Diameter:3/4 in
Chain Size:#40
Country of Origin:US
Hub Diameter:3-1/2 in
Length Through Bore:1-1/8 in
Material:Steel
Number of Teeth:48
Outside Diameter:7.929 in
Pitch:1/2 in
Pitch Diameter:7.645 in
