40BB18H 5/8 MSG

Name: 40BB18H 5/8 MSG
Brand: Martin Sprocket & Gear
SKU: 40BB18H 5/8 MSG
Price: 48.06 USD
Availability: OutOfStock

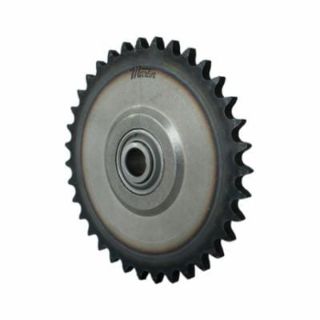

Martin 40BB18H 5/8 BB-H Ball Bearing Type A Idler Roller Chain Sprocket, 5/8 in Dia Bore, 3.14 in OD, 40 Chain, 18 Teeth, 1/2 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 40BB18H 5/8

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$48.06

Qty:

Product Details

Brand Name

Martin

Type

Ball Bearing Type A

Description

Martin idlers are smooth-running and available in oil-impregnated, sintered bronze, extra-duty bearing press-fitted in sprocket and a hardened steel journal case for maximum resistance to wear. Steel sprockets used in Martin idlers are accurately machined (not stamped) the same as sprockets normally supplied for power transmission use. Martin can also alter existing sprockets and install bearings to make custom idlers.

Martin Idler Roller Chain Sprocket, Ball Bearing Type A, Series: BB-H, 5/8 in Bore Dia, 3.14 in Outside Dia, 40 Chain, 18 Teeth, 1/2 in Pitch, 2.879 in, 2.032 in Hub Dia, 0.72 in Length Through Bore, Steel

Specifications

Bore Diameter:	5/8 in
Chain Size:	40
Country of Origin:	US
Hub Diameter:	2.032 in
Length Through Bore:	0.72 in
Material:	Steel
Number of Teeth:	18
Outside Diameter:	3.14 in
Pitch:	1/2 in
Pitch Diameter:	2.879 in
Series:	BB-H
