40BB25H 5/8 MSG

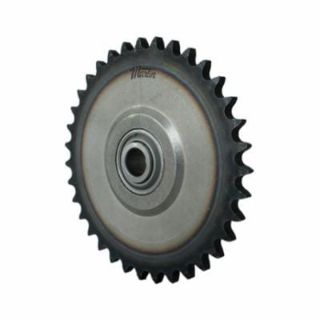

Martin 40BB25H 5/8 BB-H Ball Bearing Type A Idler Roller Chain Sprocket, 5/8 in Dia Bore, 4.26 in OD, 40 Chain, 25 Teeth, 1/2 in Pitch, Steel
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 40BB25H 5/8
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$55.00

Product Details

Brand Name

Martin

Type

Ball Bearing Type A

Description

Martin idlers are smooth-running and available in oil-impregnated, sintered bronze, extra-duty bearing press-fitted in sprocket and a hardened steel journal case for maximum resistance to wear. Steel sprockets used in Martin idlers are accurately machined (not stamped) the same as sprockets normally supplied for power transmission use. Martin can also alter existing sprockets and install bearings to make custom idlers.
Martin Idler Roller Chain Sprocket, Ball Bearing Type A, Series: BB-H, 5/8 in Bore Dia, 4.26 in Outside Dia, 40 Chain, 25 Teeth, 1/2 in Pitch, 3.989 in, 2.53 in Hub Dia, 0.72 in Length Through Bore, Steel

Specifications

Bore Diameter:5/8 in
Chain Size:40
Country of Origin:US
Hub Diameter:2.53 in
Length Through Bore:0.72 in
Material:Steel
Number of Teeth:25
Outside Diameter:4.26 in
Pitch:1/2 in
Pitch Diameter:3.989 in
Series:BB-H
