40BS24 3/4 MSG

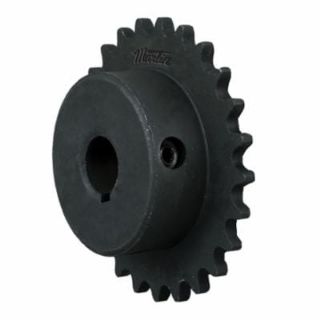

Martin 40BS24 3/4 Bored-to-Size Type BS Single Pitch Roller Chain Sprocket With Keyway, 3/4 in Dia Bore, 4.098 in OD, #40 Chain, 24 Teeth, 1/2 in Pitch, Steel
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 40BS24 3/4
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 1 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$46.77

Product Details

Brand Name

Martin

Type

Bored-to-Size Type BS

Description

These finished bore sprockets are shaft ready and come complete with keyways and setscrews. The keyways are on center line of the tooth. Bored to size sprockets with 1/2 in bores and smaller are stocked with (2) setscrews only.
Martin Single Pitch Roller Chain Sprocket, Bored-to-Size Type BS, 3/4 in Bore Dia, 4.098 in Outside Dia, #40 Chain, 24 Teeth, 1/2 in Pitch, 3.831 in, 3 in Hub Dia, 1/4-20 x 1/4 in Screw, 3/16 x 3/32 in Keyway, 1 in Length Through Bore, Steel

Standards

PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Features

  • Keyway is on center line of tooth
  • Stock finished bores
  • Non-hardened teeth

Includes

(2) Setscrews

Specifications

Bore Diameter:3/4 in
Chain Size:#40
Country of Origin:US
Hub Diameter:3 in
Keyway Size:3/16 x 3/32 in
Length Through Bore:1 in
Material:Steel
Number of Teeth:24
Outside Diameter:4.098 in
Pitch:1/2 in
Pitch Diameter:3.831 in
Screw Size:1/4-20 x 1/4 in
