40BS26 5/8 MSG

Name: 40BS26 5/8 MSG
Brand: Martin Sprocket & Gear
SKU: 40BS26 5/8 MSG
Price: 54.03 USD
Availability: OutOfStock

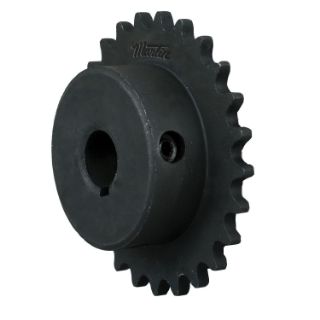

Martin 40BS26 5/8 Type B Bored-to-Size Single Strand Solid Roller Chain Sprocket, 5/8 in Dia Bore, 4.418 in OD, #40 Chain, 26 Teeth, 1/2 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 40BS26 5/8

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$54.03

Qty:

Product Details

Brand Name

Martin

Type

Type B Bored-to-Size Single Strand Solid

Description

These finished bore sprockets are shaft ready and come complete with keyways and setscrews. The keyways are on center line of the tooth. Bored to size sprockets with 1/2 in bores and smaller are stocked with (2) setscrews only.

Martin Roller Chain Sprocket, Type B Bored-to-Size Single Strand Solid, 5/8 in Bore, 4.418 in OD, #40 Chain, 26 Teeth, 1/2 in Pitch, 4.1481 in Pitch Diameter, 3-1/4 in Diameter Hub, 1/4-20 x 1/4 in Screw, 3/16 x 3/32 in Keyway, 1 in Length Through Bore, Steel

Standards

ANSI Specified | B29.1 - 1975

Features

Precise machining and processes ensure consistent finish and high quality
Bores are concentric to pitch line, minimizing run out
Two setscrews keyed on centerline of tooth
Manufactured of high carbon steel

Specifications

Bore Diameter:	5/8 in
Chain Size:	#40
Hub Diameter:	3-1/4 in
Keyway Size:	3/16 x 3/32 in
Length Through Bore:	1 in
Material:	Steel
Number of Teeth:	26
Outside Diameter:	4.418 in
Pitch:	1/2 in
Pitch Diameter:	4.1481 in
Screw Size:	1/4-20 x 1/4 in
