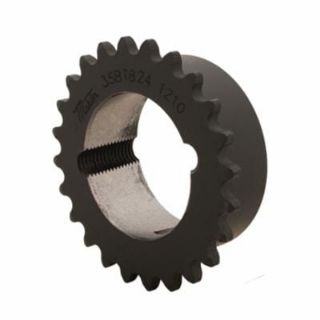

Martin Saber Tooth® 40BTB25H Taper Bushed Type B Single Pitch Roller Chain Sprocket With Hardened Teeth, 4.258 in OD, #40 Chain, 25 Teeth, 1/2 in Pitch, Steel
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 40BTB25H
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
1 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$61.31

Product Details

Brand Name

Martin

Type

Taper Bushed Type B

Description

A hardened taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head set screws instead of bolts.
Martin Saber Tooth® Single Pitch Roller Chain Sprocket, Taper Bushed Type B, 4.258 in Outside Dia, #40 Chain, 25 Teeth, 1/2 in Pitch, 3.989 in, 3-1/4 in Hub Dia, 1 in Length Through Bore, 1610 Taper Lock Bushing, Steel

Standards

PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Specifications

Bushing Type:1610 Taper Lock
Chain Size:#40
Country of Origin:US
Hub Diameter:3-1/4 in
Length Through Bore:1 in
Material:Steel
Number of Teeth:25
Outside Diameter:4.258 in
Pitch:1/2 in
Pitch Diameter:3.989 in
