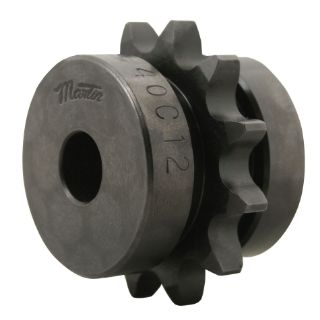

Actual Product May Vary From Image

40C18 MSG

Name: 40C18 MSG
Brand: Martin Sprocket & Gear
SKU: 40C18 MSG
Price: 81.78 USD
Availability: OutOfStock

Martin 40C18 Type C Single Strand Welded Reboreable Roller Chain Sprocket, 5/8 to 1-1/2 in Dia Bore, 3.136 in OD, #40 Chain, 18 Teeth, 1/2 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 40C18

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$81.78

Qty:

Product Details

Brand Name

Martin

Type

Type C Single Strand Welded Reboreable

Description

C Style sprockets are flat sprockets with a hub extension on either side. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, setscrews and hardened teeth are quick alterations that can be made.

Martin Roller Chain Sprocket, Type C Single Strand Welded Reboreable, 5/8 to 1-1/2 in Bore, 3.136 in OD, #40 Chain, 18 Teeth, 1/2 in Pitch, 2.8794 in Pitch Diameter, 2.313 in Diameter Hub, 1-1/2 in Length Through Bore, Steel

Standards

ANSI Specified | B29.1 - 1975

Features

Precise machining and processes ensure consistent finish and high quality
Bores are concentric to pitch line, minimizing run out
Manufactured of high carbon steel

Specifications

Bore Diameter:	5/8 to 1-1/2 in
Chain Size:	#40
Hub Diameter:	2.313 in
Length Through Bore:	1-1/2 in
Material:	Steel
Number of Teeth:	18
Outside Diameter:	3.136 in
Pitch:	1/2 in
Pitch Diameter:	2.8794 in
