40H24H MSG

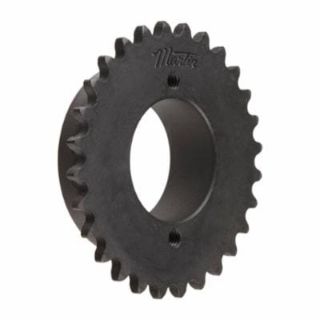

Martin 40H24H MST® H Bushed Solid Type 3 Split Single Roller Chain Sprocket, 3/8 to 10-1/2 in Dia Bore, 4.098 in OD, 40 Chain, 24 Teeth, 1/2 in Pitch, Steel
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 40H24H
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$82.19

Product Details

Brand Name

Martin

Type

MST® H Bushed Solid Type 3

Description

Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.
Martin Split Single Roller Chain Sprocket, MST® H Bushed Solid Type 3, 3/8 to 10-1/2 in Bore Dia, 4.098 in Outside Dia, 40 Chain, 24 Teeth, 1/2 in Pitch, 3.831 in, 2-1/2 in Hub Dia, 1-1/4 in Length Through Bore, Type H Split Taper Bushing, Steel

Specifications

Bore Diameter:3/8 to 10-1/2 in
Bushing Type:Type H Split Taper
Chain Size:40
Country of Origin:US
Hub Diameter:2-1/2 in
Length Through Bore:1-1/4 in
Material:Steel
Number of Teeth:24
Outside Diameter:4.098 in
Pitch:1/2 in
Pitch Diameter:3.831 in
