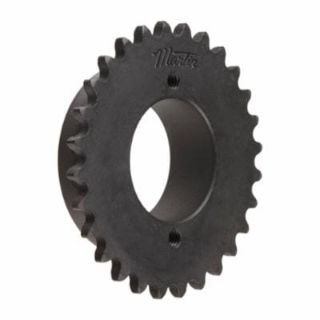

Actual Product May Vary From Image

40P30H MSG

Name: 40P30H MSG
Brand: Martin Sprocket & Gear
SKU: 40P30H MSG
Price: 92.93 USD
Availability: OutOfStock

Martin 40P30H MST® P1 Bushed Solid Type 4 Split Single Roller Chain Sprocket, 1/2 to 1-3/4 in Dia Bore, 5.057 in OD, 40 Chain, 30 Teeth, 1/2 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 40P30H

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$92.93

Qty:

Product Details

Brand Name

Martin

Type

MST® P1 Bushed Solid Type 4

Description

Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.

Martin Split Single Roller Chain Sprocket, MST® P1 Bushed Solid Type 4, 1/2 to 1-3/4 in Bore Dia, 5.057 in Outside Dia, 40 Chain, 30 Teeth, 1/2 in Pitch, 4.783 in, 3 in Hub Dia, 3/8 in W Keyway, 1-15/16 in Length Through Bore, Type H Split Taper Bushing, Steel

Specifications

Bore Diameter:	1/2 to 1-3/4 in
Bushing Type:	Type H Split Taper
Chain Size:	40
Country of Origin:	US
Hub Diameter:	3 in
Keyway Size:	3/8 in W
Length Through Bore:	1-15/16 in
Material:	Steel
Number of Teeth:	30
Outside Diameter:	5.057 in
Pitch:	1/2 in
Pitch Diameter:	4.783 in
