Actual Product May Vary From Image

40P45 BRN

Name: 40P45 BRN
Brand: Regal Rexnord
SKU: 40P45 BRN
Price: 235.54 USD
Availability: OutOfStock

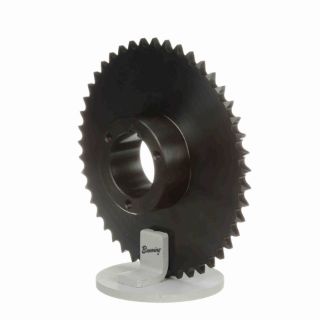

Browning® 1170190 Single Strand Split Taper Bushed Type 4 Roller Chain Sprocket, 1/2 in Dia Bore, 7.45 in OD, #40 Chain, 45 Teeth, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 1170190

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$235.54

Qty:

Product Details

Brand Name

Browning®

Type

Single Strand Split Taper Bushed Type 4

Description

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand Split Taper Bushed Type 4, 1/2 in Bore Dia, 7.45 in Outside Dia, #40 Chain, 45 Teeth, 7.168 in, 3 in Hub Dia, 2.2212 in Length Through Bore, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Features

This product has the Browning® exclusive twice the life guarantee
Easy installation and removal
Hardened teeth at no extra cost, drives sizes up to 30 teeth on 35 through 160 chain
External key higher torque capacity, aligns bolt holes
Provides key-to-key drive
Double split barrel improved clamping
Solid flange true concentricity
Longer barrel better support on the shaft
For use with 1/2 in pitch ANSI chain

Specifications

Bore Diameter:	1/2 in
Chain Size:	#40
Country of Origin:	CN
Hub Diameter:	3 in
Length Through Bore:	2.2212 in
Material:	Steel
Number of Teeth:	45
Outside Diameter:	7.45 in
Pitch Diameter:	7.168 in
