Actual Product May Vary From Image

40P60 MSG

Name: 40P60 MSG
Brand: Martin Sprocket & Gear
SKU: 40P60 MSG
Price: 131.54 USD
Availability: OutOfStock

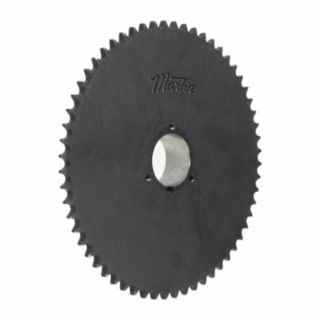

Martin 40P60 MST® P1 Bushed Type 4 Welded Split Single Roller Chain Sprocket, 1/2 to 1-3/4 in Dia Bore, 9.841 in OD, 40 Chain, 60 Teeth, 1/2 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 40P60

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$131.54

Qty:

Product Details

Brand Name

Martin

Type

MST® P1 Bushed Type 4 Welded

Description

Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.

Martin Split Single Roller Chain Sprocket, MST® P1 Bushed Type 4 Welded, 1/2 to 1-3/4 in Bore Dia, 9.841 in Outside Dia, 40 Chain, 60 Teeth, 1/2 in Pitch, 9.554 in, 3-1/4 in Hub Dia, 3/8 in W Keyway, 1-15/16 in Length Through Bore, Type P1 Split Taper Bushing, Steel

Specifications

Bore Diameter:	1/2 to 1-3/4 in
Bushing Type:	Type P1 Split Taper
Chain Size:	40
Country of Origin:	US
Hub Diameter:	3-1/4 in
Keyway Size:	3/8 in W
Length Through Bore:	1-15/16 in
Material:	Steel
Number of Teeth:	60
Outside Diameter:	9.841 in
Pitch:	1/2 in
Pitch Diameter:	9.554 in
