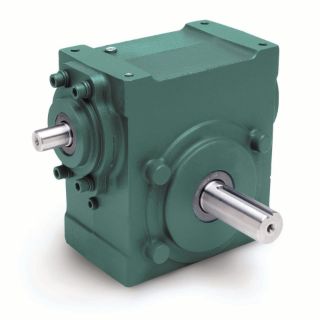

Actual Product May Vary From Image

40S25R DOD

Name: 40S25R DOD
Brand: Dodge
SKU: 40S25R DOD
Price: 3,947.66 USD
Availability: OutOfStock

40S25R TIGEAR-2 REDUCER

Manufacturer: Dodge

Manufacturer part number: 40S25R

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$3,947.66

Qty:

Product Details

Base to Output Center Height:	4.4400
Base to Output Center Height (Unit):	INCH
Case Size:	40
Center Distance:	4.0000
Center Distance (Unit):	INCH
Center to End of Shaft Distance:	8.1200
Center to End of Shaft Distance (Unit):	INCH
Gearbox Component Type:	Gearbox
Horsepower Rating Input:	6.3500
Horsepower Rating Input (Unit):	HORSEPOWER
Horsepower Rating Output:	5.2500
Horsepower Rating Output (Unit):	HORSEPOWER
Housing Material:	Cast Iron
Input Style:	Separate
Lubrication:	PAG, Standard Temperature
Mounting Bolt Pattern Length:	8.5000
Mounting Bolt Pattern Length (Unit):	INCH
Mounting Bolt Pattern Width:	5.0000
Mounting Bolt Pattern Width (Unit):	INCH
Nominal Ratio:	25.0000
Output Shaft:	Right (Solid B)
Output Style:	Right
Overhung Load:	4300
Overhung Load (Unit):	POUND_FORCE
Paint Type:	Standard
Rated Torque Output:	4722
Rated Torque Output (Unit):	INCH_POUND
Seal Type:	Single-Lip Contact
Shaft Diameter Input:	1.1250
Shaft Diameter Input (Unit):	INCH
Shaft Diameter Output:	1.8750
Shaft Diameter Output (Unit):	INCH
Shaft Length Input:	1.8100
Shaft Length Input (Unit):	INCH
Shaft Length Output:	3.7600
Shaft Length Output (Unit):	INCH
Suitable For Washdown:	No
Thermal Horsepower Rating:	6.4500
Thermal Horsepower Rating (Unit):	HORSEPOWER
