40SDS54 BRN

Name: 40SDS54 BRN
Brand: Regal Rexnord
SKU: 40SDS54 BRN
Availability: OutOfStock

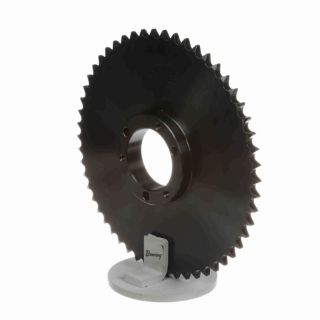

Browning® 3330784 Single Strand QD Bushed Type QD-1 Roller Chain Sprocket, 1/2 in Dia Bore, 8.885 in OD, #40 Chain, 54 Teeth, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 3330784

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Single Strand QD Bushed Type QD-1

Description

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand QD Bushed Type QD-1, 1/2 in Bore Dia, 8.885 in Outside Dia, #40 Chain, 54 Teeth, 8.599 in, 3.14 in Hub Dia, 1.6923 in Length Through Bore, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Features

This product has the Browning® exclusive twice the life guarantee
Easy installation and removal
Hardened teeth at no extra cost, drives sizes up to 30 teeth on 40 through 160 chain
Reverse mounting possible
For use with 1/2 in pitch ANSI chain

Specifications

Bore Diameter:	1/2 in
Chain Size:	#40
Country of Origin:	CN
Hub Diameter:	3.14 in
Length Through Bore:	1.6923 in
Material:	Steel
Number of Teeth:	54
Outside Diameter:	8.885 in
Pitch Diameter:	8.599 in
