Actual Product May Vary From Image

40SPL NER

Name: 40SPL NER
Brand: Appleton
SKU: 40SPL NER
Price: 5.22 USD
Availability: InStock

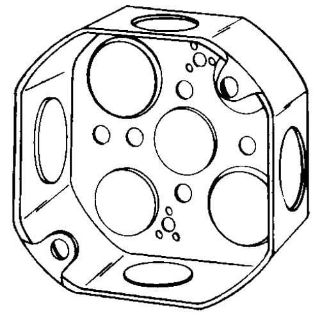

Appleton® ETP™ 4O-SPL Octagon Box, Steel, 15.5 cu-in Capacity, 9 Knockouts, 1-1/2 in D

Manufacturer: Appleton

Manufacturer part number: 4O-SPL

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
47	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$5.22

Qty:

Product Details

Brand Name

Appleton®

Description

Appleton™ and O-Z/Gedney™ metallic 4" octagon boxes, extension rings and covers are widely recognized for quality, selection and ease of installation. They may be used as a junction box or a device box for switches, receptacles, GFCIs, etc. Manufactured of durable materials with consistent construction means easy installation, making all the difference in the speed and final quality of any wiring job.

Appleton® ETP™ Octagon Box, 9 Knockouts, 1/2 in, 3/4 in Knockout, 4 in Dia, Octagon, NEMA OS-1, Bolt-On/Threaded Mount, 15.5 cu-in, Steel, Pre-Galvanized, 1-1/2 in D

Application

Residential and Commercial Applications

Standards

ARRA Compliant | Buy American Act Compliant | UL 514A File No. E2527

Features

Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 VAC
Unless otherwise noted all concentric or eccentric knockouts are 1/2 to 3/4 in combinations
Single and double gang metallic outlet and switch boxes are acceptable for use in two hour fire rated walls
Groundskeeper raised ground feature on boss inside box provides one or two #10-32 tapped hole, allowing a 3/8 in long green ground screw to be threaded into box without contacting mounting surface
Other boxes provided with flat ground tapped hole, except plenum boxes
(3) 1/2 in bottom, (2) 3/4 in bottom, (2) 1/2 in side, (2) 3/4 in side knockouts

Specifications

Capacity:	15.5 cu-in
Country of Origin:	US
Diameter:	4 in
Dimensions:	1-1/2 in D
Enclosure Type:	NEMA OS-1
Finish:	Pre-Galvanized
Knockout Size:	1/2 in, 3/4 in
Material:	Steel
Mounting Type:	Bolt-On/Threaded
Number of Knockouts:	9
Shape:	Octagon
