410-30VMF53 RBC

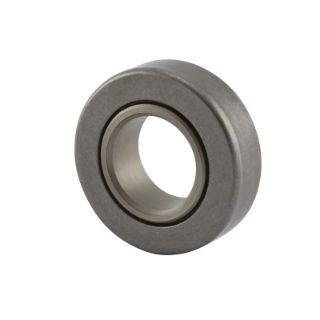

Nice® 41030VMF53 400® Round Bore Unground Radial Ball Bearing, 5/8 in Dia Bore, 1-3/8 in OD, 1 Row, 1/2 in W, 375 lb Load
Manufacturer part number: 41030VMF53
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Nice®

Type

Round Bore

Description

The 400® Series of unground radial ball bearings are designed for moderate loads and speeds where running accuracy and noise level requirements do not warrant the more expensive precision ground bearings. This series of bearings feature a full ball complement without a retainer and a soft steel band on the outer ring. This permits the bearing to be pressed into a housing without the necessity of close housing tolerances. The bearings are designed for use in applications with speeds not exceeding 1200 rpm.
Nice® Unground Radial Ball Bearing, Round Bore, Series: 400®, 5/8 in Bore Dia, 1-3/8 in Outside Dia, 1 Row, 1/2 in W, Open Closure, 375 lb, 52100 Steel Bearing, 1200 rpm Maximum, 300 deg F, Steel

Application

Textile Machinery, Agricultural Machinery, Pulleys, Idlers and Material Handling Equipment

Standards

ASPR | CAS | DFAR | FAR Standards

Features

  • Designed for moderate loads and speeds
  • 1010 soft carbon steel band on the outer ring permits the bearing to be pressed into a housing without the necessity of close housing tolerances
  • Hardened inner and outer rings
  • Full complement of balls for maximum capacity
  • Pregreased with metered Shell Alvania #2 grease
  • Fully unitized assembly
  • C0 clearance
  • No filling slot
  • Without cage
  • Case hardened carbon steel rings
  • Grade 200 carbon steel balls
  • Full compliant
  • Shell Darina EP2
  • Straight outside ring
  • Without snap ring

Specifications

Bearing Material:52100 Steel
Bore Diameter:5/8 in
Closure Type:Open
Country of Origin:US
Finish:Steel
Load Capacity:375 lb
Maximum Speed:1200 rpm
Number of Rows:1
Outside Diameter:1-3/8 in
Series:400®
Temperature Rating:300 deg F
Width:1/2 in
