4104-TV INA

Name: 4104-TV INA
Brand: INA
SKU: 4104-TV INA
Availability: OutOfStock

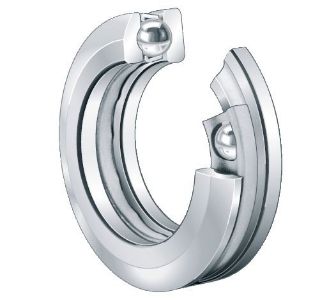

INA 4104-TV 4100 Thrust Ball Bearing, 20 mm Bore Dia, 40 mm OD, 16 mm W, 19800 N Dynamic/31000 N Static

Manufacturer: INA

Manufacturer part number: 4104-TV

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

INA

Description

INA Thrust Ball Bearing, Series: 4100, 20 mm Bore Dia, 40 mm Outside Dia, 16 mm Width, Separable Face, Single Thrust Direction, 19800 N Dynamic/31000 N Static, 6500 rpm Maximum

Features

Medium cross section
Grooved race
Separable axial contact
Static alignment is equal to +/- 3.0 deg
Available in non aligning 900 series
Speed limit shown is for oil lubrication

Specifications

Bore Diameter:	20 mm
Face Type:	Separable
Load Capacity:	19800 N Dynamic/31000 N Static
Maximum Speed:	6500 rpm
Outside Diameter:	40 mm
Series:	4100
Thrust Direction:	Single
Width:	16 mm
