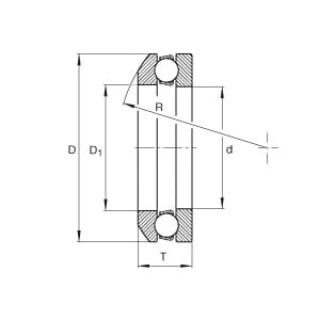

Actual Product May Vary From Image

4108 INA

Name: 4108 INA
Brand: INA
SKU: 4108 INA
Availability: OutOfStock

INA 4108 Axial Deep Groove Ball Bearing, 1.575 in Dia Bore, 2.52 in OD, 0.827 in W, 8540 lb Dynamic/17500 lb Static Load

Manufacturer: INA

Manufacturer part number: 4108

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

INA

Description

INA Axial Deep Groove Ball Bearing, Series: 41 Series, 1.575 in Bore Dia, 2.52 in Outside Dia, 0.827 in Width, Separable Face, Single Thrust Direction, 8540 lb Dynamic/17500 lb Static, 3800 rpm Maximum

Features

Medium cross section
Grooved race
Angular adjustment facility
Separable axial contact
Static alignment is equal to +/- 3.0 deg
Speed limit shown is for oil lubrication

Specifications

Bore Diameter:	1.575 in
Face Type:	Separable
Load Capacity:	8540 lb Dynamic/17500 lb Static
Maximum Speed:	3800 rpm
Outside Diameter:	2.52 in
Series:	41 Series
Thrust Direction:	Single
Width:	0.827 in
