411N20A0 THO

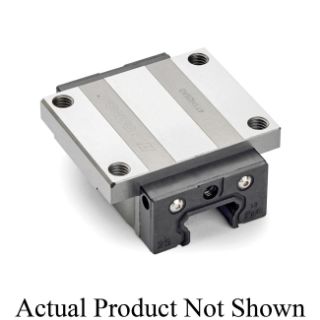

Picture of 411N20A0 THO
Actual Product May Vary From Image

Product Details

Manufacturer:
Thomson Industries
Manufacturer part number:
411N20A0
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$151.99 / EA

Description

Brand Name

Thomson®

Description

Thomson® Ball Carriage, Series: 400, Standard Block Style, 20 mm W Rail, 63 mm Width, 25.5 mm Height, 69.3 mm Length, 30 mm Slide Height, M6 Carriage Hole, For Use With: 400 Series Profile Rails, 14300 N Dynamic/30500 N Static Load, 5 m/s Maximum, Alloy Steel Carriage, 80 deg C

Standards

RoHS Compliant

Features

  • Polymer ball-return tube reduces noise and vibration while retaining lubrication
  • Double-faced ball tracks utilize a 45 deg face-to-face bearing arrangement, resulting in equal load-carrying capacity in all directions
  • Carriage does not retain ball bearings when end cap is removed
  • Removal of end caps can result in loss of ball bearings
  • Normal grade accuracy class
  • Clearance preload

Specifications

Carriage Hole Size:M6
Carriage Material:Alloy Steel
Country of Origin:TW
Height:25.5 mm
Length:69.3 mm
Load Capacity:14300 N Dynamic/30500 N Static
Maximum Speed:5 m/s
Rail Size:20 mm W
Series:400
Slide Height:30 mm
Style:Standard Block
Suitable For Use With:400 Series Profile Rails
Temperature Rating:80 deg C
Width:63 mm
