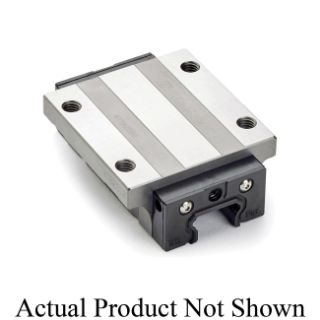

Actual Product May Vary From Image

411N25B1 THO

Name: 411N25B1 THO
Brand: Thomson Industries
SKU: 411N25B1 THO
Price: 185.39 USD
Availability: OutOfStock

Thomson® 411N25B1 400 Ball Carriage, Standard Long Block Style, 25 mm W Rail, 93.9 mm L x 70 mm W x 30.2 mm H

Manufacturer: Thomson Industries

Manufacturer part number: 411N25B1

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$185.39

Qty:

Product Details

Brand Name

Thomson®

Description

Thomson® Ball Carriage, Series: 400, Standard Long Block Style, 25 mm W Rail, 70 mm Width, 30.2 mm Height, 93.9 mm Length, 36 mm Slide Height, M8 Carriage Hole, For Use With: 400 Series Profile Rails, 25900 N Dynamic/52800 N Static Load, 5 m/s Maximum, Alloy Steel Carriage, 80 deg C

Standards

RoHS Compliant

Features

Polymer ball-return tube reduces noise and vibration while retaining lubrication
Double-faced ball tracks utilize a 45 deg face-to-face bearing arrangement, resulting in equal load-carrying capacity in all directions
Carriage does not retain ball bearings when end cap is removed
Removal of end caps can result in loss of ball bearings
Normal grade accuracy class
Approximately 0.03 clearance preload

Specifications

Carriage Hole Size:	M8
Carriage Material:	Alloy Steel
Height:	30.2 mm
Length:	93.9 mm
Load Capacity:	25900 N Dynamic/52800 N Static
Maximum Speed:	5 m/s
Rail Size:	25 mm W
Series:	400
Slide Height:	36 mm
Style:	Standard Long Block
Suitable For Use With:	400 Series Profile Rails
Temperature Rating:	80 deg C
Width:	70 mm
