41292-DEI LEV

Name: 41292-DEI LEV
Brand: Leviton Manufacturing
SKU: 41292-DEI LEV
Availability: OutOfStock

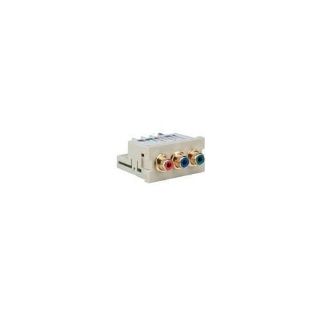

Leviton® 41292-DEI MOS Connector Module, RCA Connector, 3 Ports, 110 IDC Termination, Surface Mount, Ivory

Manufacturer: Leviton Manufacturing

Manufacturer part number: 41292-DEI

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Description

Leviton® RCA component video 110-termination multi-media outlet system (MOS) modules provide a point-to-point connection for component video signals over twisted pair cabling. Connect DVD players, Blu-Ray players and other media sources to televisions and other displays using industry standard RCA connectors. The IDC termination allows for quick termination and customization of cable lengths in the field. The RCA modules require a Leviton® MOS wallplate. The modules are manufactured from durable ABS plastic and are available in white, ivory or light almond.

Leviton® MOS Connector Module, RCA Connector, UTP/Shielded Twisted-Pair Cable, 75 Ohm Impedance, Surface Mounting, 3 Ports, 110 IDC Termination, For Use With: Leviton® Multimedia Outlet System Wallplate, ABS, Ivory, 0.96 in H x 1.85 in W x 1.65 in D

Application

Commercial Applications

Standards

cULus Listed | UL 1863 | CAN/CSA C22.2 No. 182.4-M90

Features

QuickPort® adapter modules expand your options to include QuickPort® category-rated connectors, HDMI, DVI, USB, S-Video, F-connectors
Provides a point to point RCA connection for component video signals over twisted pair cabling (UTP or shielded)
Twisted-pair cabling can be cut to length in field
Twisted-pair cabling provides a migration path for future digital signals
Fast and easy cable termination using color coded 110 style IDC connectors
Modules must be installed in a Leviton® MOS wallplate
One twisted pair cable required
Component RCA modules designed to support video resolutions of 1080i for distances up to 100 ft
RCA connectors have a 13 mm (center to center) spacing to accommodate cords with larger plugs
Modules are 1-unit high
Modules are not compatible with MOS surface mount boxes

Specifications

Cable Type:	UTP/Shielded Twisted-Pair
Color:	Ivory
Connector Type:	RCA
Dimensions:	0.96 in H x 1.85 in W x 1.65 in D
Impedance:	75 Ohm
Material:	ABS
Mounting Type:	Surface
Number of Ports:	3
Suitable For Use With:	Leviton® Multimedia Outlet System Wallplate
Termination Type:	110 IDC
