Actual Product May Vary From Image

4142X3/4 BRN

Name: 4142X3/4 BRN
Brand: Regal Rexnord
SKU: 4142X3/4 BRN
Availability: OutOfStock

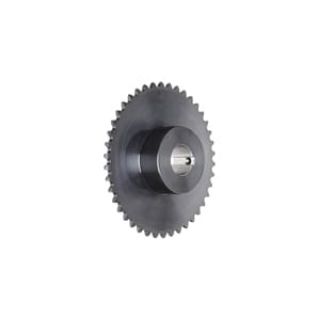

Browning® 1132034 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Keyway, 3/4 in Dia Bore, 6.97 in OD, #41 Chain, 42 Teeth, 1/2 in Pitch, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 1132034

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Single Strand Finished Bore Type 1

Description

Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand Finished Bore Type 1, 3/4 in Bore, 6.97 in OD, #41 Chain, 42 Teeth, 6.691 in Pitch Diameter, 3.516 in Diameter Hub, 1.063 in Length Through Bore, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Features

Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
For use with 1/2 in pitch ANSI chain

Specifications

Bore Diameter:	3/4 in
Chain Size:	#41
Country of Origin:	US
Hub Diameter:	3.516 in
Length Through Bore:	1.063 in
Material:	Steel
Number of Teeth:	42
Outside Diameter:	6.97 in
Pitch Diameter:	6.691 in
