415SMT148 BRN

Name: 415SMT148 BRN
Brand: Regal Rexnord
SKU: 415SMT148 BRN
Availability: OutOfStock

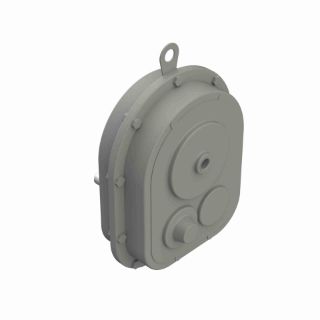

Browning® TorqTaper® Plus 1725050 Type SMT Shaft Mount Reducer, Shaft Input, Tapered Bore Output, 1 hp, 148:1 Gear Ratio, 11.82 rpm Maximum Output, 36.013 in-lb Input/4264.02 in-lb Output Torque Rating

Manufacturer: Regal Rexnord

Manufacturer part number: 1725050

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Type SMT

Description

RBC drives are a specialized shaft mount reducer. RBC stands for rotating biological contactor. These reducers are designed with a split power path. The split path design provides twice the tooth engagement and therefore handles the rigorous load requirements of the RBC application.

Browning® TorqTaper® Plus Shaft Mount Reducer, Type SMT, 148:1 Gear Ratio, 1 hp, Shaft Input, Tapered Bore Output, 1-5/8 in Input, 4-15/16 in Output, 11.82 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 36.013 in-lb Input/4264.02 in-lb Output, 0.38 x 0.38 x 4.5 Input/1.25 in W x 0.38 in D Output Keyway, 80 % Efficiency, Synthetic/Mineral Oil Lubrication, 40.375 in L x 17.38 in W x 26.75 in H

Application

Water and Wastewater Industries

Features

Browning® provides superior RBC drive solutions, built rugged and dependable for minimal maintenance and downtime
Split power path design, provides twice the tooth engagement when compared conventional drives
Leak free operation, plunge ground shafts with dual lip oil seals
High quality bearings, 100,000 hr B-10 life at 5 hp class II service

Includes

4-15/16 in Tapered Bushing and Standard Motor Mount

Specifications

Country of Origin:	US
Dimensions:	40.375 in L x 17.38 in W x 26.75 in H
Efficiency:	80 %
Gear Ratio:	148:1
Horsepower:	1 hp
Input Maximum Speed:	1750 rpm
Input Size:	1-5/8 in
Input Type:	Shaft
Keyway Size:	0.38 x 0.38 x 4.5 Input/1.25 in W x 0.38 in D Output
Lubrication Type:	Synthetic/Mineral Oil
Output Maximum Speed:	11.82 rpm
Output Size:	4-15/16 in
Output Type:	Tapered Bore
Torque Rating:	36.013 in-lb Input/4264.02 in-lb Output
