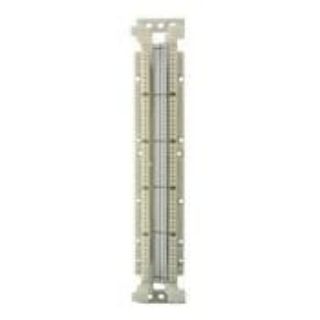

41AW1-50 LEV

Name: 41AW1-50 LEV
Brand: Leviton Manufacturing
SKU: 41AW1-50 LEV
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

41AW1-50

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Leviton®

Type

110-Style

Description

The cross connect shall be Cat 5e 110-style wiring blocks, mountable to a wall or backboard to provide 110-termination capable of supporting voice, security and Cat 5e data applications, including high megabit and shared sheath applications when used with Cat 5e rated cabling. The 110 rack mount blocks shall mount to a 19 in distribution frame or hinged wall mount bracket. The components shall be UL listed and ANSI/ TIA-568-C compliant. Blocks shall support 50, 100 or 300-pair densities with provision for ANSI/TIA-606-B compliant labeling. Plastic bases and blocks shall be made of fire retardant plastic rated UL 94-V-0.

Leviton®, 41AW1-50, Wiring Connecting Block, 110-Style, Cross Connect Block, 50 Pair Count, Category: CAT 5e, Specifications: Wall Mount, Plastic, 1.8 in H x 10.7 in W x 3.3 in D Dimensions, Ivory

Application

Building Entrance Facilities, Telecommunications Closets, Equipment Rooms to Provide Fixed Cross Connections For Voice, Security, Data and Commercial Applications

Standards

UL Listed | ANSI/TIA-568-C.2 | UL94 V-0 Flammability Rating

Features

Wall mount
Use where space limitations and low cost are factors
110 wiring blocks are available with or without standoff legs
Kitted versions include 50, 100 or 300-pair bases with legs, labels, label holders, C-4 or C-5 connector blocks
Port ID option use the label strips and holders provided with the 300-pair wiring base and kit versions of these products
Route cable bundles either adjacent to wiring bases or underneath units with legs
Route individually marked cables from both left and right sides
UL 94V-0 fire retardant

Specifications

Block Type:	110-Style
Category Type:	Cat 5e
Color:	Ivory
Country of Origin:	TW
Dimensions:	1.8 in H x 10.7 in W x 3.3 in D
Material:	Plastic
Pair Count:	50
Specifications:	UL 94V-0 Flammability Rating
