Actual Product May Vary From Image

41AW2-100 LEV

Name: 41AW2-100 LEV
Brand: Leviton Manufacturing
SKU: 41AW2-100 LEV
Availability: OutOfStock

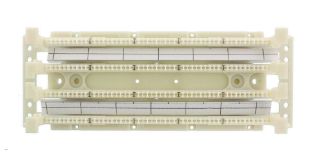

Leviton® GigaMax® 41AW2-100 110-Style Wall Mount Wiring Block Kit With Legs, Cross Connect Block, 100 Pair Count, Cat 5e, Ivory

Manufacturer: Leviton Manufacturing

Manufacturer part number: 41AW2-100

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

110-Style Wall Mount

Description

The cross connect shall be Cat 5e 110-style wiring blocks, mountable to a wall or backboard to provide 110 termination capable of supporting voice, security and Cat 5e data applications, including high megabit and shared sheath applications when used with Cat 5e rated cabling. The 110 rack-mount blocks shall mount to a 19 in distribution frame or hinged wall mount bracket. The components shall be UL listed and ANSI/TIA-568-C compliant. Blocks shall support 50, 100 or 300 pair densities with provision for ANSI/TIA-606-B compliant labelling. Plastic bases and blocks shall be made of fire-retardant plastic rated UL 94V-0.

Leviton® GigaMax® Wiring Block Kit, 110-Style Wall Mount, Cross Connect Block, 100 Pair Count, Category: Cat 5e, Plastic, 3.62 in H x 10.7 in W x 3.3 in D, Ivory

Application

For voice, security, data and commercial applications

Standards

UL Listed | ANSI/TIA-568-C.2 | UL 94 V-0 Flammability Rated

Features

Use where space limitations and low cost are factors
Port ID option - use the label strips and holders provided with the 300-pair wiring base and kit versions of these products
Mount on wall or backboard
Route cable bundles either adjacent to wiring bases or underneath units with legs
Route individually marked cables from both left and right sides

Specifications

Block Type:	Cross Connect
Category Type:	Cat 5e
Color:	Ivory
Dimensions:	3.62 in H x 10.7 in W x 3.3 in D
Material:	Plastic
Pair Count:	100
