41B6 BRN

Name: 41B6 BRN
Brand: Regal Rexnord
SKU: 41B6 BRN
Availability: OutOfStock

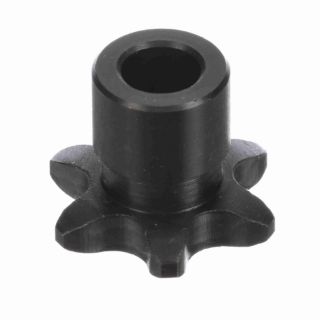

Browning® 1121888 Single Strand Minimum Bore Type B Roller Chain Sprocket, 3/8 in Dia Bore, 1.17 in OD, #41 Chain, 6 Teeth, 1/2 in Pitch, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 1121888

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Single Strand Minimum Bore Type B

Description

Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.

Browning® Roller Chain Sprocket, Single Strand Minimum Bore Type B, 3/8 in Bore Dia, 1.17 in Outside Dia, #41 Chain, 6 Teeth, 1/2 in Pitch, 1 in, 21/32 in Hub Dia, 7/8 in Length Through Bore, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Standards

ANSI Specified

Features

Hub is recessed for chain clearance
Lasts longer than sprockets made from low carbon steel
Hub projection on one side
High quality, high carbon steel
For use with 1/2 in pitch ANSI chain

Specifications

Bore Diameter:	3/8 in
Chain Size:	#41
Country of Origin:	CN
Hub Diameter:	21/32 in
Length Through Bore:	7/8 in
Material:	Steel
Number of Teeth:	6
Outside Diameter:	1.17 in
Pitch:	1/2 in
Pitch Diameter:	1 in
