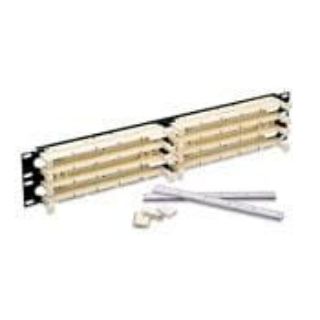

Actual Product May Vary From Image

41DBR-2F5 LEV

Name: 41DBR-2F5 LEV
Brand: Leviton Manufacturing
SKU: 41DBR-2F5 LEV
Availability: OutOfStock

Leviton® GigaMax® 41DBR-2F5 110-Style Rack Mount Wiring Block Kit With (48) C-5 Clips, Cross Connect Block, 26 to 22 AWG Wire, 200 Pair Count, Cat 5e, Black

Manufacturer: Leviton Manufacturing

Manufacturer part number: 41DBR-2F5

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

110-Style Rack Mount

Description

The cross connect shall be Cat 5e 110-style wiring blocks, mountable to a wall or backboard to provide 110 termination capable of supporting voice, security and Cat 5e data applications, including high megabit and shared sheath applications when used with Cat 5e rated cabling. The 110 rack-mount blocks shall mount to a 19 in distribution frame or hinged wall mount bracket. The components shall be UL listed and ANSI/TIA-568-C compliant. Blocks shall support 50, 100 or 300 pair densities with provision for ANSI/TIA-606-B compliant labelling. Plastic bases and blocks shall be made of fire-retardant plastic rated UL 94V-0.

Leviton® GigaMax® Wiring Block Kit, 110-Style Rack Mount, Cross Connect Block, 26 to 22 AWG Wire, 200 Pair Count, Category: Cat 5e, Plastic, 1.73 in H x 19 in W x 1.75 in D, Black

Application

For voice, security, data and commercial applications

Standards

UL Listed | ANSI/TIA-568-C.2 | UL 94 V-0 Flammability Rated

Features

Use where space limitations and low cost are factors
Port ID option - use the label strips and holders provided with the 300-pair wiring base and kit versions of these products
Mount on wall or backboard
Route cable bundles either adjacent to wiring bases or underneath units with legs
Route individually marked cables from both left and right sides

Specifications

Block Type:	Cross Connect
Category Type:	Cat 5e
Color:	Black
Country of Origin:	TW
Dimensions:	1.73 in H x 19 in W x 1.75 in D
Material:	Plastic
Pair Count:	200
Wire Gauge:	26 to 22 AWG
