Actual Product May Vary From Image

41H26 BRN

Name: 41H26 BRN
Brand: Regal Rexnord
SKU: 41H26 BRN
Availability: OutOfStock

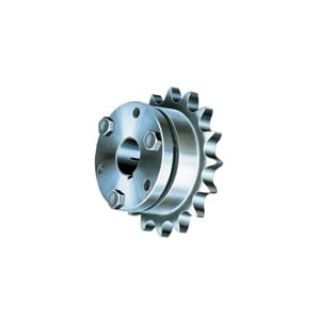

Browning® 1180199 Single Strand Split Taper Bushed Type 3 Roller Chain Sprocket, 3/8 in Dia Bore, 4.418 in OD, #41 Chain, 26 Teeth, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 1180199

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Single Strand Split Taper Bushed Type 3

Description

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand Split Taper Bushed Type 3, 3/8 in Bore Dia, 4.418 in Outside Dia, #41 Chain, 26 Teeth, 4.148 in, 2.494 in Hub Dia, 1.5123 in Length Through Bore, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Features

This product has the Browning® exclusive twice the life guarantee
Easy installation and removal
Hardened teeth at no extra cost, drives sizes up to 30 teeth on 35 through 160 chain
External key higher torque capacity, aligns bolt holes
Provides key-to-key drive
Double split barrel improved clamping
Solid flange true concentricity
Longer barrel better support on the shaft
For use with 1/2 in pitch ANSI chain

Specifications

Bore Diameter:	3/8 in
Chain Size:	#41
Country of Origin:	CN
Hub Diameter:	2.494 in
Length Through Bore:	1.5123 in
Material:	Steel
Number of Teeth:	26
Outside Diameter:	4.418 in
Pitch Diameter:	4.148 in
