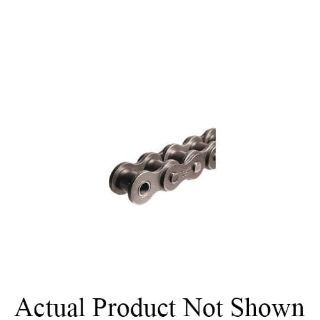

Actual Product May Vary From Image

41R 10FT MOR

Name: 41R 10FT MOR
Brand: Regal Rexnord
SKU: 41R 10FT MOR
Price: 10.80 USD
Availability: OutOfStock

Morse® 099654 Riveted Standard Duty Roller Chain, 10 ft OAL, 1/2 in Pitch, 0.306 in Dia x 1/4 in W Roller, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 099654

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$10.80

Qty:

Product Details

Brand Name

Morse®

Type

Riveted Standard Duty

Description

Morse® markets roller chain featuring greater resistance and increased endurance limit. Morse® shot-peens its rollers to create a favorable state of compression residual stress on the surface. This process eliminates surface cracks and blemishes. The chain offered meets the standards required in the marketplace for many applications.

Morse® Roller Chain, Riveted Standard Duty, 1/2 in Pitch, 0.141 in Pin Diameter, 0.53 in Pin Length, 0.306 in Roller Diameter, 1/4 in Roller Width, 0.383 in Plate Height, 0.05 in Plate Thickness, 1 Links, 1 Strands, 2000 lb Tensile Strength, 10 ft Overall Length, Steel

Application

Aggregate, Cement, Forestry, Minerals, Mining, Pulp and Paper Industries

Standards

ANSI B29.1

Features

Created for applications requiring high horsepower at low speeds
Far exceeds ANSI performance standard
Rigid manufacturing processes result in a fully-featured chain
Unmatched quality and performance

Specifications

Country of Origin:	JP
Material:	Steel
Number of Links:	1
Number of Strands:	1
Overall Length:	10 ft
Pin Diameter:	0.141 in
Pin Length:	0.53 in
Pitch:	1/2 in
Plate Height:	0.383 in
Plate Thickness:	0.05 in
Roller Diameter:	0.306 in
Roller Width:	1/4 in
Tensile Strength:	2000 lb
