421 80/1 C WR HUB

Name: 421 80/1 C WR HUB
Brand: Hub City
SKU: 421 80/1 C WR HUB
Availability: OutOfStock

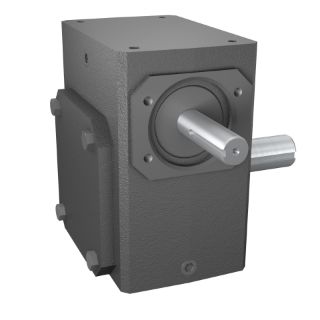

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0230-16735

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style C

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style C, Series: W420PCX, 80:1 Gear Ratio, 2.35 hp Input, Shaft Input, Shaft Output, 1.25 in Dia x 3.47 in L Input, 1-7/8 in Dia x 4-1/2 in L Output, 21.9 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 4500 in-lb Output, 4-1/4 in Centre Distance, 1/4 x 1/8 in Input, 1/2 x 1/4 in Output Keyway, 66.5 % Efficiency, Conventional Oil Lubrication, Cast Iron, 11-3/8 in H

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and Increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	4-1/4 in
Dimensions:	11-3/8 in H
Efficiency:	66.5 %
Gear Ratio:	80:1
Horsepower:	2.35 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1.25 in Dia x 3.47 in L
Input Type:	Shaft
Keyway Size:	1/4 x 1/8 in Input, 1/2 x 1/4 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	21.9 rpm
Output Size:	1-7/8 in Dia x 4-1/2 in L
Output Type:	Shaft
Series:	W420PCX
Torque Rating:	4500 in-lb Output
