422 50/1 A WR 1.750 HUB

Name: 422 50/1 A WR 1.750 HUB
Brand: Hub City
SKU: 422 50/1 A WR 1.750 HUB
Availability: OutOfStock

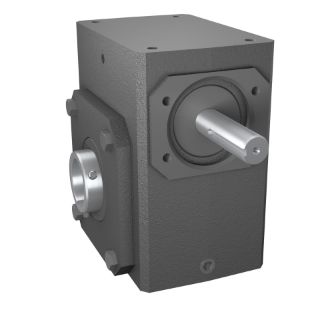

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0230-16793

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: W420PCX, 50:1 Gear Ratio, 4.49 hp Input, Shaft Input, Hollow Bore Output, 1.25 in Dia x 3.47 in L Input, 1-3/4 in Dia Output, 35 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 5848 in-lb Output, 4-1/4 in Centre Distance, 1/4 x 1/8 in Input Keyway, 72.4 % Efficiency, Conventional Oil Lubrication, Cast Iron, 8-1/2 in W x 11-3/8 in H

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and Increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	4-1/4 in
Dimensions:	8-1/2 in W x 11-3/8 in H
Efficiency:	72.4 %
Gear Ratio:	50:1
Horsepower:	4.49 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1.25 in Dia x 3.47 in L
Input Type:	Shaft
Keyway Size:	1/4 x 1/8 in Input
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	35 rpm
Output Size:	1-3/4 in Dia
Output Type:	Hollow Bore
Series:	W420PCX
Torque Rating:	5848 in-lb Output
