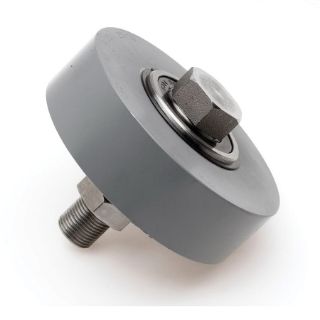

Actual Product May Vary From Image

4.25X1.25-IDL-FLAT GAT

Name: 4.25X1.25-IDL-FLAT GAT
Brand: Gates
SKU: 4.25X1.25-IDL-FLAT GAT
Availability: OutOfStock

Flat Idlers

Manufacturer: Gates

Manufacturer part number: 4.25X1.25-IDL-FLAT

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Gates

Alternate Supplier #

77234125

Description

Idlers are used to take-up extra belt length and provide adjustment for tensioning belt drives. Idler pulleys and sprockets can alter belt paths and clear obstructions.

Features

Idler assembly may consist of: idler sprocket and bracket, flat idler and bracket, standard sheave or sprocket used with an idler bearing and idler bracket. Idler sprockets, flat idlers and idler bushings contain sealed ball bearings and an integral shaft for mounting to adjustable idler brackets. Lubrication and maintenance are not required.

Specifications

A (in):	1.13
A (mm):	28.7
B (in):	1.13
B (mm):	28.7
Bore/Bear/Bush#:	6304
C (in):	.64
C (mm):	16.3
Country of Origin:	US
D (in):	1.30
D (mm):	33
E (in):	3.75
E (mm):	95.3
Face Width (in):	1.25
Face Width (mm):	31.8
GC Base Product:	Flat Idler Pulley
Harmonized Tariff Code:	8483.50.9080
Material:	Steel
OD (in):	4.25
OD (mm):	108
Proposition 65:	NO
Sync Belt Pitch:	8mm, L, H
Sync Belt Width:	Up to 21mm (0.85")
Thread Size:	3/4-16
Use V Belt:	1-2 Strand 3V/3VX, 1 Strand A/AX
