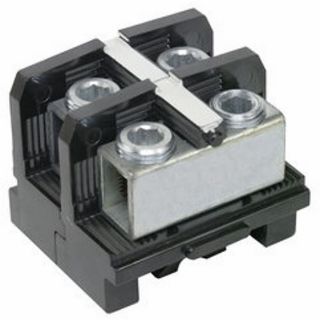

426 IDE

Features: Accepts #12 To #2/0 AWG; Rated 270A; Withstands Temperatures Up To 150 DEG C; 600V Rating; Full Line Of Accessories Available; This Ultra Heavy Duty Line Is Rated Up To 255 Amps With A Single 250 MCM Conductor; Compact Block Accepts Wire Sizes Up To 2/0 Or 250 KCMIL (MCM); 57 Circuits Per 6 Foot Length; Tubular Screw Contact Style For Maximum Electrical Rating; Block Mounts Directly On Flat Surface Or Standard Channel; Only One End Section Needed Per Block Assembly; Readily Identifiable Circuits Write Directly On Painted Marking Area Or Use Removable Vinyl Marking Strip; Hex Socket Screws Allow Maximum Torque When Using Large Wire Sizes; High Current Capacity Snap-Fit Sectional Blocks Do Not Snap-Fit With Other Block Styles; Marking Area: Painted; Temperature Rating: 150; Screw Type: 1/2-30 Hex Socket; Ul High Voltage Arc Testing: 0.49 - 0.58 IN/MINT; Radiation Resistance (ergs G1 C): 2.7 X 10 Power 8 Minimum; Chemical Resistance: Resistant To Acids, Alkalies, Aliphatic Hydrocarbons And Ketones (Per ASTM D5343); Dielectric Strength: 300 V/MIL Thickness (Per ASTM D149); Water Absorption (24 Hr Pct Weight Gain): 0.45 PCT (Per ASTM D570); Flammability: 94V-1 (Per UL94)
