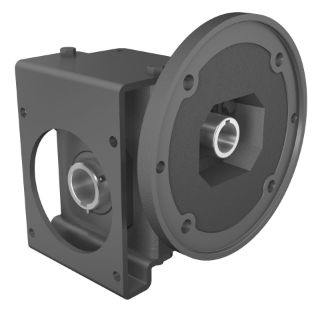

Actual Product May Vary From Image

426L 50/1 L WR 182TC 1.938 HUB

Name: 426L 50/1 L WR 182TC 1.938 HUB
SKU: 426L 50/1 L WR 182TC 1.938 HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-43897 W420LPCX Right Angle Single Reduction Style L Worm Gear Reducer, C-Face Quill Input, Hollow Bore Output, 4.49 hp Input, 50:1 Gear, 35 rpm Maximum Output, 6391 in-lb Output Torque Rating

Manufacturer part number: 0230-43897

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style L

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style L, Series: W420LPCX, 50:1 Gear Ratio, 4.49 hp Input, C-Face Quill Input, Hollow Bore Output, 1-1/8 in Dia Input, 1.938 in Dia Output, 35 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 6391 in-lb Output, 4-1/4 in Centre Distance, 79.1 % Efficiency, PAG Synthetic Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and Increased efficiency
Alloy shafting
FKM seals
Factory lubricated with food-grade synthetic lubricant - USDA class H1 approved

Specifications

Centre Distance:	4-1/4 in
Efficiency:	79.1 %
Gear Ratio:	50:1
Horsepower:	4.49 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1-1/8 in Dia
Input Type:	C-Face Quill
Lubrication Type:	PAG Synthetic Oil
Material:	Cast Iron
Output Maximum Speed:	35 rpm
Output Size:	1.938 in Dia
Output Type:	Hollow Bore
Series:	W420LPCX
Torque Rating:	6391 in-lb Output
