427 IDE

Accepts #6 To 250 KCMIL AWG; Rated 270 A; Withstands Temperatures Up To 150 deg C; 600 VAC Rating; Full Line Of Accessories Available; This Ultra Heavy Duty Line Is Rated Up To 255 A With A Single 250 MCM Conductor; Compact Block Accepts Wire Sizes Up To 2/0 Or 250 KCMIL (MCM); 57 Circuits Per 6 Foot Length; Tubular Screw Contact Style For Maximum Electrical Rating; Block Mounts Directly On Flat Surface Or Standard Channel; Only One End Section Needed Per Block Assembly; Readily Identifiable Circuits Write Directly On Painted Marking Area Or Use Removable Vinyl Marking Strip; Hex Socket Screws Allow Maximum Torque When Using Large Wire Sizes; High Current Capacity Snap-Fit Sectional Blocks Do Not Snap-Fit With Other Block Styles; Marking Area: Painted; Temperature Rating:150 deg C; Screw Type:3/4-16 Hex Socket; Ul High Voltage Arc Testing:0.49 - 0.58 in/MINT; Radiation Resistance (ergs G1 C):2.7 X 10 Power 8 Minimum; Chemical Resistance: Resistant To Acids, Alkalies, Aliphatic Hydrocarbons And Ketones (Per ASTM D5343); Dielectric Strength:300 VAC/MIL Thickness (Per ASTM D149); Water Absorption (24 hr Pct Weight Gain):0.45 PCT (Per ASTM D570); Flammability:94V-1 (Per UL94)

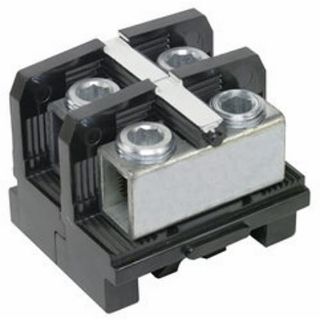

BUCHANAN Terminal Block, Ultra Heavy Duty, 600 VAC, 270 A, 6 AWG to 250 kcmil Wire, 1.19 in Center Spacing, 2-Way Mounting, Tubular Screw Connection, 150 deg C, Phenolic, 1-1/5 in L x 2-1/2 in H Dimensions
