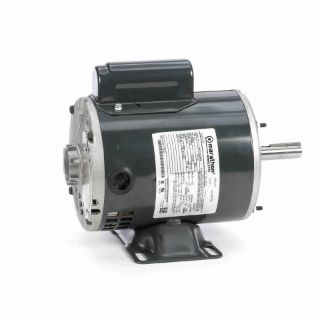

Actual Product May Vary From Image

4314 MAR

Name: 4314 MAR
Brand: Marathon Electric Motors
SKU: 4314 MAR
Availability: OutOfStock

1/6 HP Fan and Blower HVAC/R Motor, 1 phase, 1800 RPM, 115 V, 48 Frame, ODP

Manufacturer part number: 4314

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

5KH39QN5520X

Sleeve bearing Rolled steel frame

C Dim (IN):	8.93
CE:	N
Connection Drawing Number:	52A105379AA
Country of Origin:	Mexico
CSA:	Y
Current:	3.9
DE Bearing Type:	SLEEVE
Duty:	Continuous
Efficiency:	0
Electrical Type:	Split Phase
Enclosure Type:	Drip Proof
Frame Length (IN):	5.16
Frame Material:	Rolled Steel
Frame Size:	48
Frame Type:	48
Frequency:	60
Harmonized Tariff Code:	8501.40.4040
HP:	1/6
Insulation Class:	B
KVA Code:	S
Max Ambient:	40°C
Motor Orientation:	ANY
Mounting Type:	Resilient Base
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Type:	SLEEVE
Outline Drawing Number:	52A111792P1
Phases:	1
Power Factor:	0
Power Rating (HP):	0.17
Power Rating (kW):	0.13
Rotation:	Counterclockwise/Clockwise
Service Factor:	1.35
Shaft Extension:	.500 X 1.50 FLAT
Speed:	1725
Speed Max:	1725
Starting Type:	SM
Thru-bolts Extension:	0
Type of Overload Protector:	AUTO
UL:	Recognized
Voltage:	115
