4350 MAR

Name: 4350 MAR
Brand: Marathon Electric Motors
SKU: 4350 MAR
Availability: OutOfStock

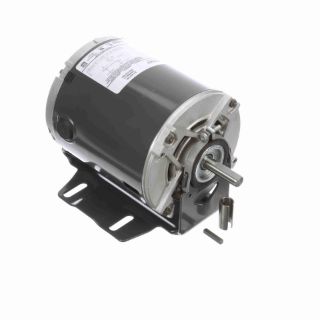

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

4350

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

5KH39QN5538X

Ball bearings Shaft extension 1-7/8" long by 1/2" diameter 5/8" shaft adapter included Heavy gauge steel frame and base

C Dim (IN):	9.19
CE:	N
Connection Drawing Number:	52A105379AA
Country of Origin:	Mexico
CSA:	Y
Current:	3.9
DE Bearing Size:	6203
DE Bearing Type:	BALL
Duty:	Continuous
Efficiency:	49.6
Electrical Type:	Split Phase
Enclosure Type:	Drip Proof
Frame Length (IN):	5.41
Frame Material:	Rolled Steel
Frame Size:	56
Frame Suffix:	Z
Frame Type:	56Z
Frequency:	60
Harmonized Tariff Code:	8501.40.4040
HP:	1/6
Insulation Class:	B
KVA Code:	S
Max Ambient:	40°C
Motor Orientation:	ANY
Mounting Type:	Resilient Base
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	BALL
Outline Drawing Number:	52A106942P1
Phases:	1
Power Factor:	0
Power Rating (HP):	0.17
Power Rating (kW):	0.13
Rotation:	Counterclockwise/Clockwise
Service Factor:	1.35
Shaft Diameter (IN):	0.5
Shaft Extension:	1.5
Speed:	1725
Speed Max:	1725
Starting Type:	SM
Thru-bolts Extension:	0
Type of Overload Protector:	AUTO
UL:	Recognized
Voltage:	115
