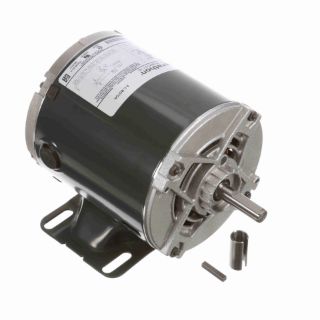

Actual Product May Vary From Image

4372 MAR

Name: 4372 MAR
Brand: Marathon Electric Motors
SKU: 4372 MAR
Availability: OutOfStock

1/3 HP General Purpose Motor, 1 phase, 1800 RPM, 115 V, 56Z Frame, ODP

Manufacturer part number: 4372

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

5KH39QN9546

Heavy gauge steel frame and base Economical split phase design Shaft extension 1-1/2" long by 1/2" diameter

C Dim (IN):	8.9
CE:	N
Connection Drawing Number:	52A105377AA
Country of Origin:	Mexico
CSA:	Y
Current:	6.2
DE Bearing Size:	6203
DE Bearing Type:	BALL
Duty:	Continuous
Efficiency:	59.5
Electrical Type:	Split Phase
Enclosure Type:	Drip Proof
Frame Length (IN):	5.16
Frame Material:	Rolled Steel
Frame Size:	56
Frame Suffix:	Z
Frame Type:	56Z
Frequency:	60
Harmonized Tariff Code:	8501.40.4040
HP:	1/3
Insulation Class:	B
KVA Code:	T
Max Ambient:	40°C
Motor Orientation:	ANY
Mounting Type:	Rigid Base
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	BALL
Outline Drawing Number:	52A106960P1
Phases:	1
Power Factor:	0
Power Rating (HP):	0.33
Power Rating (kW):	0.25
Rotation:	Counterclockwise/Clockwise
Service Factor:	1
Shaft Diameter (IN):	0.5
Shaft Extension:	1.5
Speed:	1725
Speed Max:	1725
Starting Type:	SM
Thru-bolts Extension:	0
Type of Overload Protector:	NONE
UL:	Recognized
Voltage:	115
