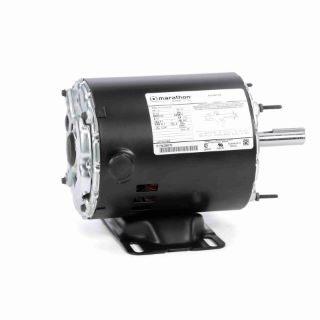

Actual Product May Vary From Image

4380 MAR

Name: 4380 MAR
Brand: Marathon Electric Motors
SKU: 4380 MAR
Availability: OutOfStock

.33 HP General Purpose Motor, 1 phase, 1800 RPM, 115 V, 48 Frame, ODP

Manufacturer: Marathon Electric Motors

Manufacturer part number: 4380

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Alternate Supplier #

5KH39QN9681X

Features

Heavy gauge steel frame and base Ball bearings (except as noted) Economical split phase or capacitor start designs, as noted 1.0 Service Factor UL Recognized and CSA Certified

Specifications

C Dim (IN):	8.9
Connection Drawing Number:	52A105379AA
Country of Origin:	Mexico
Current:	6.2
DE Bearing Size:	6203
DE Bearing Type:	BALL
Duty:	Continous
Efficiency:	0
Electrical Type:	Split Phase
Enclosure Type:	Drip Proof
Frame Length (IN):	5.16
Frame Size:	48
Frame Type:	48
Frequency:	60
Harmonized Tariff Code:	8501.40.4040
HP:	.33
Insulation Class:	B
KVA Code:	T
Max Ambient:	40°C
Motor Orientation:	ANY
Mounting Type:	Rigid
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	BALL
Outline Drawing Number:	52A106959P1
Phases:	1
Power Factor:	0
Power Rating (HP):	.33
Power Rating (kW):	.25
Rotation:	Counterclockwise/Clockwise
Service Factor:	1
Shaft Extension:	.500 X 1.50 FLAT
Speed:	1725
Speed Max:	1725
Starting Type:	SM
Thru-bolts Extension:	0
Type of Overload Protector:	AUTO
UL:	Recognized
Voltage:	115
