Actual Product May Vary From Image

4386 MAR

Name: 4386 MAR
Brand: Marathon Electric Motors
SKU: 4386 MAR
Availability: OutOfStock

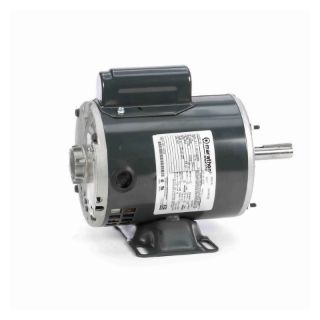

Marathon® 5KH39QN9218 4-Pole Continuous-Duty Split Phase AC Motor, Open Drip-Proof Enclosure, 0.5 hp, 115 VAC, 60 Hz, 1 ph Phase, 56 Frame, 1725 rpm Speed, Resilient Base Mount

Manufacturer: Marathon Electric Motors

Manufacturer part number: 5KH39QN9218

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Marathon®

Type

4-Pole Continuous-Duty Split Phase

Description

Marathon® AC Motor, 4-Pole Continuous-Duty Split Phase, 0.5 hp, 115 VAC, 8.3 A, 60 Hz Frequency, 1 ph ph, 1725 rpm Speed, 1 Speed, Open Drip-Proof Enclosure, 56 Frame, 0.625 in Dia x 1.88 in L Shaft, CW/CCW Rotation, 1 Service Factor, Ball Bearing, Resilient Base Mounting, 40 deg C, Insulation Class: Class B, Steel, 11.85 in L x 5.61 in W x 6.33 in H Dimensions

Standards

CSA Certified | UL Listed

Features

Heavy gauge steel frame and base

Specifications

Amperage Rating:	8.3 A
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	11.85 in L x 5.61 in W x 6.33 in H
Enclosure Type:	Open Drip-Proof
Frame:	56
Frequency Rating:	60 Hz
Horsepower:	0.5 hp
Insulation Class:	Class B
Material:	Steel
Mounting Type:	Resilient Base
Number of Speeds:	1
Phase:	1 ph
Rotation:	CW/CCW
Service Factor:	1
Shaft Size:	0.625 in Dia x 1.88 in L
Speed:	1725 rpm
Temperature Rating:	40 deg C
Voltage Rating:	115 VAC
