4399 MAR

Name: 4399 MAR
Brand: Marathon Electric Motors
SKU: 4399 MAR
Availability: OutOfStock

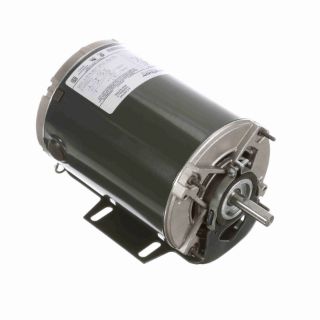

1/4-1/12 HP 2 speed Fan and Blower HVAC/R Motor, 1 phase, 1800/1800 RPM, 115 V, 48 Frame, ODP

Manufacturer part number: 4399

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

5KH39QN9551X

Ball bearings Variable torque on two speed ratings Heavy gauge steel frame and base

C Dim (IN):	10.4
CE:	N
Connection Drawing Number:	52A105385AC
Country of Origin:	Mexico
CSA:	Y
Current:	4.2
DE Bearing Size:	6203
DE Bearing Type:	BALL
Duty:	Continuous
Efficiency:	58
Electrical Type:	Split Phase
Enclosure Type:	Drip Proof
Frame Length (IN):	6.62
Frame Material:	Rolled Steel
Frame Size:	48
Frame Type:	48
Frequency:	60
Harmonized Tariff Code:	8501.40.4040
HP:	1/4-1/12
Insulation Class:	B
KVA Code:	M
Max Ambient:	40°C
Motor Orientation:	ANY
Mounting Type:	Resilient Base
Number of Poles:	4
Number of Speeds:	2
ODE Bearing Size:	6203
ODE Bearing Type:	BALL
Outline Drawing Number:	52A103001P5
Phases:	1
Power Factor:	0
Power Rating (HP):	0.25
Power Rating (kW):	0.19
Rotation:	Counterclockwise/Clockwise
Service Factor:	1.35
Shaft Diameter (IN):	0.5
Shaft Extension:	1.5
Speed:	1725/1140
Speed Max:	1725
Starting Type:	SM
Thru-bolts Extension:	0.57
Type of Overload Protector:	AUTO
UL:	Recognized
Voltage:	115
