440J12 GAT

Name: 440J12 GAT
Brand: Gates
SKU: 440J12 GAT
Price: 43.03 USD
Availability: OutOfStock

Micro-V™

Manufacturer: Gates

Manufacturer part number: 440J12

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$43.03

Qty:

Product Details

Brand Name

Gates

Alternate Supplier #

917104412

Description

Gates Micro-V® belts ensure outstanding performance on any industrial multi-ribbed drive. They cover a multitude of industrial applications and are suitable for industrial drives in washing machines, textile machines, vacuum cleaners, lawn mowers, machine tools, medical equipment and many more. Exclusive truncated (shortened) profile gives Gates Micro-V belts increased flexibility, reduced heat buildup and allows performance at higher speeds on smaller diameter sheaves. The full line of Micro-V belt products includes slabs in several widths as well as single belts in J, K, L and M sections in order to perfectly match customer requirements.

Features

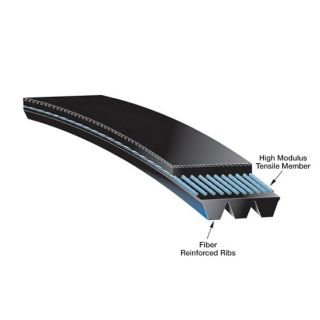

Fiber reinforced ribs for excellent wear resistance. High modulus, low stretch tensile member for added strength and dependability. Smooth running for minimal vibration at high speeds. Well suited for applications such as appliances, outdoor power equipment, roller conveyors, machine tools, medical equipment and exercise equipment. Meets ARPM/RMA IP-3-2 oil and heat resistant standards.

Specifications

Angle:	42
Belt Back Side:	Smooth
Belt Inside:	Ribbed
Belt/Slab:	Belt
Color:	Black
Construcao:	Multi Ribbed Belt
Cord Material:	Polyester
Country of Origin:	MX
Effective Length (in):	44
Effective Length (mm):	1118
GC Base Product:	Industrial Micro-V® J-Section Belts
Harmonized Tariff Code:	4010.31.3000
Material:	Polychloroprene (Neoprene)
Max Temp (°C):	+82
Max Temp (F):	+180
Min Temp (°C):	-34
Min Temp (F):	-30
Number of Ribs/Strands:	12
OC (in):	44.47
OC (mm):	1130
Proposition 65:	NO
Secao:	PJ
Sided:	Single Sided
Static Conductive:	No
Thickness (in):	0.128
Thickness (mm):	3
Top Width (in):	1.104
Top Width (mm):	28
Unitset (V80):	No
