Picture of 441-3 GRL
Actual Product May Vary From Image

441-3 GRL

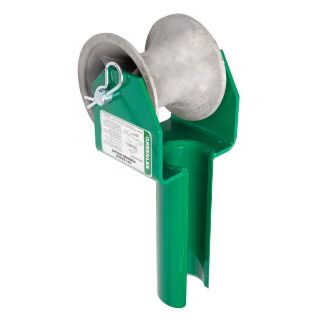

Greenlee® 441-3 Cable Feeding Sheave Assembly, 6050 lb at 15 deg, 6 in OD
Manufacturer: Greenlee
Manufacturer part number: 441-3
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Greenlee®

Alternate Supplier #

Grainger - 34E910

Description

Greenlee® Cable Feeding Sheave Assembly, 6050 lb at 15 deg, 6 in Outside Dia, Aluminum Alloy

Application

Electrical Cable Feeding Applications

Standards

ARRA Compliant

Features

  • Yoke frame slides into the end of conduit and holds sheave, allowing the cable being fed into the conduit to smoothly roll over the sheave
  • 5 in wide aluminum alloy sheaves with self-lubricating bearings
  • Split tube for easy removal after cable is installed
  • Load rating 3150 lb at 30 deg, 2200 lb at 45 deg, 1800 lb at 60 deg, 1600 lb at 75 deg, 1550 lb at 90 deg

Includes

25160 UPC (1) 25160 Sheave Pin, 50302 UPC (2) 50302 Sheave Pin Clip and (1) UPC 15362 15362 Sheave

Specifications

Capacity:6050 lb at 15 deg
Country of Origin:US
Material:Aluminum Alloy
Outside Diameter:6 in
