Name: 44110-B20 ILS
Brand: Ilsco Corporation
SKU: 44110-B20 ILS
Availability: OutOfStock

44110-B20 ILS

Actual Product May Vary From Image

Product Details

Manufacturer:

Ilsco Corporation

Manufacturer part number:

44110-B20

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

ILSCO®

Type

Non-Insulated

Description

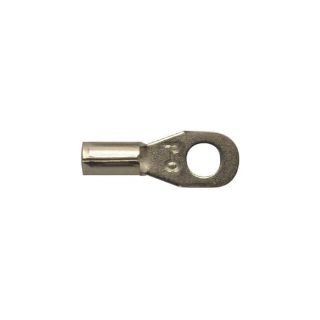

ILSCO® ClearChoice® Ring Terminal, Non-Insulated, Copper Conductor, 16 to 14 AWG Conductor, #4 Stud, 0.55 in Length, Ring Tongue, 1/4 in W Tongue, 600 VAC, 90 deg C, Copper Alloy, Electro-Tin Plated

Application

Terminating Connector Applications

Standards

UL 8M24 File No. E158587 | CSA Certified | PROP65: it is not known to contain any chemicals associated with this regulation

Features

Provides maximum conductivity
Provides low contact resistance
Silver solder brazed seam
May be crimped anywhere and will not split open, even under extreme operating stresses
Ensures reliability for copper conductor

Specifications

Conductor Size:	16 to 14 AWG
Conductor Type:	Copper
Country of Origin:	US
Finish:	Electro-Tin Plated
Length:	0.55 in
Material:	Copper Alloy
Stud Size:	#4
Temperature Rating:	90 deg C
Tongue Size:	1/4 in W
Tongue Type:	Ring
Voltage Rating:	600 VAC
