Actual Product May Vary From Image

44H200SK BRN

Name: 44H200SK BRN
Brand: Regal Rexnord
SKU: 44H200SK BRN
Availability: OutOfStock

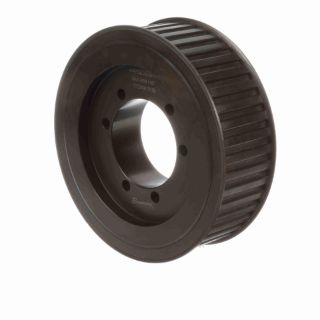

Browning® Gearbelt® 3514205 Type DF Solid Synchronous Flanged Pulley, 1/2 to 2-5/8 in QD® Bore, 6.949 in OD, 44 Grooves, 7.003 in Dia Pitch, 2-11/32 in W Face

Manufacturer: Regal Rexnord

Manufacturer part number: 3514205

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Type DF Solid

Description

Browning® Gearbelt® Synchronous Flanged Pulley, Type DF Solid, QD® Bore, 1/2 to 2-5/8 in Bore, 6.949 in OD, 7.003 in Pitch Diameter, 44 Grooves, 1/2 in Pitch, 2-11/32 in Face Width, 7-1/4 in Diameter Flange, SK Bushing, For Use With: 2 in W Type H200 Belt, Cast Iron

Application

Agriculture, Forestry, Packaging Machinery and Unit Handling Industries

Features

Constant speed no slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
Light weight high horsepower to weight ratio makes Browning® Gearbelt® drives ideal for any application where weight is a factor
Broad depth of product to choose from Browning® offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
High modulus strength member, needs minimum take-up
Freedom from initial belt tension, reduces bearing loads, increases life
Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
Less heat, because Gearbelt® drives generate virtually no friction
No lubrication required
Wide load capacity range
Wide belt speed range

Specifications

Bore Diameter:	1/2 to 2-5/8 in
Bore Type:	QD®
Bushing Type:	SK
Country of Origin:	US
Face Width:	2-11/32 in
Flange Diameter:	7-1/4 in
Material:	Cast Iron
Number of Grooves:	44
Outside Diameter:	6.949 in
Pitch:	1/2 in
Pitch Diameter:	7.003 in
Suitable For Use With:	2 in W Type H200 Belt
