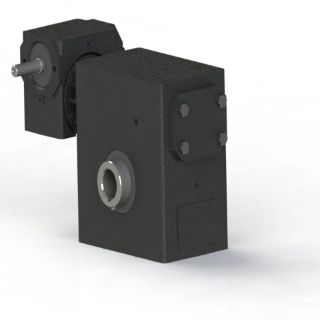

Actual Product May Vary From Image

4502 50/1 WR STD HUB

Name: 4502 50/1 WR STD HUB
SKU: 4502 50/1 WR STD HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-37141 4500 Double Reduction Right Angle Standard Worm Gear Reducer, Shaft Input, Hollow Bore Output, 9.45 hp Input, 50:1 Gear, 35 rpm Maximum Output, 12090 in-lb Output Torque Rating

Manufacturer part number: 0230-37141

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Double Reduction Right Angle Standard

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle Standard, Series: 4500, 50:1 Gear Ratio, 9.45 hp Input, Shaft Input, Hollow Bore Output, 0.875 in Dia x 2.38 in L Input, 35 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 12090 in-lb Output, 4-1/2 in Centre Distance, 3/16 x 3/32 in Input Keyway, 71.1 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and Increased efficiency
Alloy shafting
QD™ bushings provide widest possible range of bore size in shaft mounted models

Specifications

Centre Distance:	4-1/2 in
Efficiency:	71.1 %
Gear Ratio:	50:1
Horsepower:	9.45 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	0.875 in Dia x 2.38 in L
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	35 rpm
Output Type:	Hollow Bore
Series:	4500
Torque Rating:	12090 in-lb Output
