4505 750/1 WR 143TC STD HUB

Name: 4505 750/1 WR 143TC STD HUB
Brand: Hub City
SKU: 4505 750/1 WR 143TC STD HUB
Availability: OutOfStock

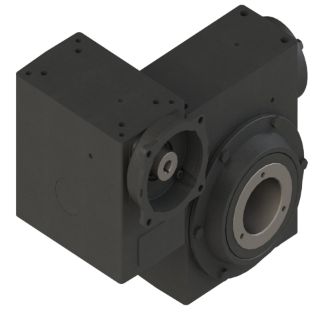

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0230-37371

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Double Reduction Right Angle Standard

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle Standard, Series: 4500, 750:1 Gear Ratio, 1.32 hp Input, C-Face Quill Input, Hollow Bore Output, 7/8 in Dia Input, 2.33 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 15480 in-lb Output, 4-1/2 in Centre Distance, 43.4 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and Increased efficiency
Alloy shafting

Specifications

Centre Distance:	4-1/2 in
Efficiency:	43.4 %
Gear Ratio:	750:1
Horsepower:	1.32 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	7/8 in Dia
Input Type:	C-Face Quill
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	2.33 rpm
Output Type:	Hollow Bore
Series:	4500
Torque Rating:	15480 in-lb Output
