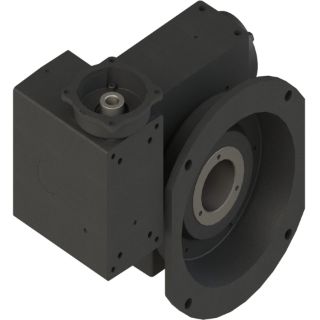

Actual Product May Vary From Image

4506 250/1 WR 143TC STD (SIDE MT) HUB

Name: 4506 250/1 WR 143TC STD (SIDE MT) HUB
SKU: 4506 250/1 WR 143TC STD (SIDE MT) HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-37446 4500 Double Reduction Right Angle Standard Worm Gear Reducer With Side Mounting Flange, C-Face Quill Input, Hollow Bore Output, 2.26 hp Input, 250:1 Gear, 7 rpm Maximum Output, 10320 in-lb Output Torque Rating

Manufacturer part number: 0230-37446

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Double Reduction Right Angle Standard

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle Standard, Series: 4500, 250:1 Gear Ratio, 2.26 hp Input, C-Face Quill Input, Hollow Bore Output, 7/8 in Dia Input, 7 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 10320 in-lb Output, 4-1/2 in Centre Distance, 50.6 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and Increased efficiency
Alloy shafting

Specifications

Centre Distance:	4-1/2 in
Efficiency:	50.6 %
Gear Ratio:	250:1
Horsepower:	2.26 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	7/8 in Dia
Input Type:	C-Face Quill
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	7 rpm
Output Type:	Hollow Bore
Series:	4500
Torque Rating:	10320 in-lb Output
